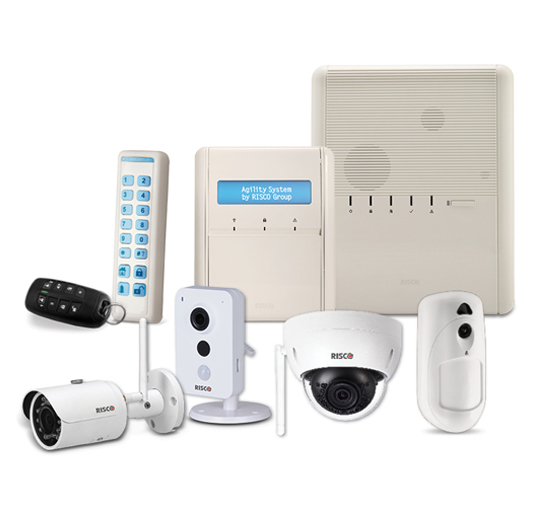

Agility™3

Agility™3 offers an award-winning wireless visual verification solution via integrated camera detectors, and is now performance-optimized with an extended range and 3G communication – perfect for homes and small to medium-sized businesses.

Easy to install, cloud-based Agility™3 seamlessly integrates RISCO’s Smart Home and VUpoint’s live video verification solutions to offer a comprehensive, user-connected home management solution – while also presenting a tremendous growth potential for installation professionals.

Category:

Description

Features

  • Wireless zones (1-way or 2-way): 32
  • Wired Zones: 4 (with I/O Expander)
  • Wireless PIR Cameras: 8
  • User codes: 32
  • Partitions: 3
  • Remote Controls (1- way or 2-way): 8 (4 button or 8 buttons)
  • Keypads (2-way): 3 – LCD or Slim with full installer programming and proximity and adaptive menu tree displays only the  relevant options according to installed hardware and authorization level
  • Self monitoring app gives customers full control
  • Full range of accessories available
  • Wireless Sounders (2-way): 3 (Indoor or Outdoor)
  • Wired Outputs: 4 (with I/O Expander): 2x3A relay and 2x500mA
  • X-10: Supported with I/O Expander
  • Event log: 250
  • Alarm Receiving Centre: 3
  • Follow-me destinations: 16
  • Flexible communication: PSTN, IP, and GSM/GPRS in any combination
  • Reporting formats: Contact ID, SIA level 2 & 3 (text support), IP/GSM
  • Receiver, SIA IP (with encryption)
  • Engineer Programming Methods:
  • Local using RS232 for Configuration Software
  • Local using LCD 2-way keypad
  • Remote using configuration software (GPRS, IP, PSTN)
  • Firmware upgrade: Local or remote via GPRS or IP
  • Automated scheduling: 8 (set/unset or output control)

End user features:

  • Smartphone apps and web browser for video verification,
    set/unset, control and monitoring the system.
  • Email: Event and images notification
  • SMS: Event notification and remote control.
  • Audio: voice event messaging, touch-tone control with full voice menu guide, two-way audio for listen-in and speak-in
  • Dimensions (H x W x D): 640 x 268.5 x 219.5 mm (10.57 x 8.64 x 2.52 inch)
  • Approvals: EN50131 Grade 2, Class II; EN50136; INCERT; SBSC

Technical Specifications

  • Power: 230VAC (-15%+10%), 50Hz, 50mA
  • Units: Main board: Typical 130mA
  • GSM: Stand by 35mA, Communication 300mA
  • Modem: Stand by 20mA, Communication 60mA
  • IP Card: 90mA (Max)
  • Backup battery: Sealed Lead Acid Battery 6V 3.2Ah
  • Speaker configuration: External in parallel with internal or additional external
  • Internal Siren intensity: 90 dBA @1m
  • Operating temperature: -10°C to 40°C (14°F to 131°F)
  • Storage temperature: -20°C to 60°C (-4°F to 140°F)
  • Dimensions: 268.5 mm x 219.5 mm x 64 mm (10.57 x 8.64 x 2.52 inch)
  • Weight (no battery): 1.31Kg (Full configuration), GSM module: 0.045 Kg
  • Radio Immunity: According to EN 50130-4
  • Frequency: 868.65 MHz/433.92 MHz
