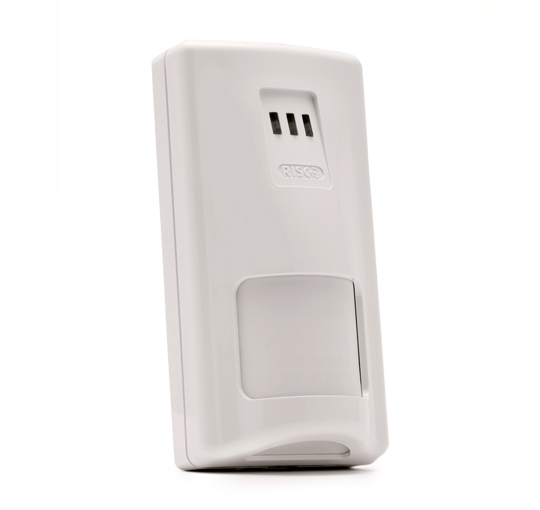

iWISE® QUAD AM Grade 3

iWISE® Quad AM has two independent dual element PIR sensors and digital processing channels providing the highest level of catch performance and false alarm immunity.



[column md=”6″]

  • Two dual-element PIR sensors
  • Coverage 15m (50’)
  • Two independent digital signal processing channels
  • Active IR Anti-mask
  • Built-in Triple EOL resistors, jumper selectable
  • Opto relays for defeating large magnets
  • Cover and wall/corner tampers
  • Model name: RK800Q0G3 – iWISE QUAD AM, Grade 3

[column md=”6″]
Technical Specifications

  • Type: Indoor QUAD
  • PD6662, EN50131-2-2: Grade 3
  • RISCO Bus: Special iWISE® Bus Models
  • PIR Sensor: 2 dual elements
  • Intelligent Digital Signal Processing
  • Digital detector and true temperature compensation
  • Built-in EOL resistors
  • Anti-mask method: Active IR
  • Coverage and lenses supplied: Wide angle 15m, (50’)
  • Mounting Height: 2.1m-2.7m (7-11’)
  • Optional Accessories: Wall swivel with back tamper, wall/ corner swivel, ceiling swivel
