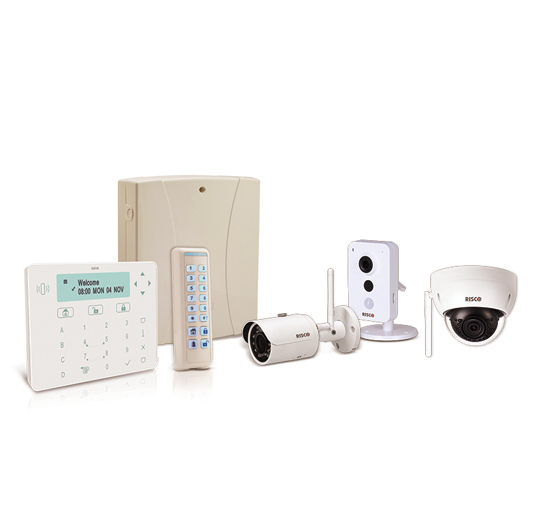

LightSYS™2

LightSYS™2 is a professional hybrid security system for the residential and commercial sectors that is flexible, reliable and easy to install. LightSYS™2 supports RISCO Group’s revolutionary live video verification solution, VUpoint P2P, a cloud-based platform that utilizes IP Cameras to provide real-time video streaming in response to alarm triggers or on demand, and RISCO Smart Home – offering comprehensive user-connected solutions for homes and businesses, with an exciting growth potential for installation professionals!

LightSYS™ 2 supports 3G with multi-socket IP communication and cloud connectivity backup. Offering full flexibility, the system includes a range of communication options – including IP, GSM/GPRS, PSTN and long range radio – all installed within the main housing. LightSYS™ 2 also offers a wide range of accessories, including wired, 2-way wireless, and RISCO Bus detectors.

Category:

Description

Features

[row]
[column md=”6″]

  • Wired, wireless or RISCO Bus detectors
  • Flexible communication from within the main housing
  • Plug-in, GSM/GPRS and IP modules, onboard PSTN
  • Wireless receiver can be installed inside or outside the main enclosure
  • Selectable EOL zone resistance and remote zone resistance measurement
  • RISCO Bus technology saves you time and money, while Auto-Install and Bus Test simplify installation and maintenance

[/column]
[column md=”6″]

  • Adaptive menu tree displays only the relevant options according to hardware installed and authorization level
  • Easy firmware upgrade with flash memory
  • Advanced PC configuration Software for easy remote or onsite programming
  • Live Video Verification now available

[/column]
[/row]

Technical Specifications

[row]
[column md=”6″]

  • Zones: 8 – 48 wired, 8 – 50 wireless – up to 32 BUS detectors
  • Partitions: 4
  • Groups per partition: 4
  • Zone resistance: Fully selectable
  • Remote zone diagnostics: Voltage and resistance measurement on all wired zones
  • Zone loop response: 400ms, 1 sec, 10ms, 1ms
  • Additional inputs: Bell tamper, Box tamper
  • Programmable outputs: 4 (3*100mA opto-relays + 1A relay) expandable to 14
  • User codes: 30, 1,000 Event log
  • Keypads: 4 wired, 2 wireless

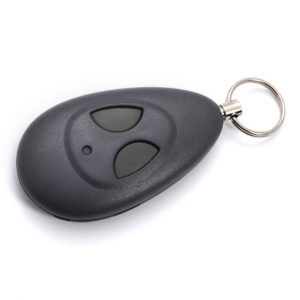

  • Wireless Keyfobs: 16
  • Follow-me destinations: 16
  • Reporting formats: Contact ID, SIA with or without text, IP/GSM Receiver

[/column]
[column md=”6″]

  • Communication: PSTN on-board, Plug-in IP or modem, Plug-in GSM/GPRS and STU adapter programmable from the LightSYS™ keypad (
    Installed on the Bus within the main enclosure)
  • Digital Voice Module: Full voice menu guide, two-way remote listen-in and talk, Pre-recorded or user-recordable messages for
    all zones, partitions and outputs, Remote operations such as acknowledge event, arm/disarm, activate outputs, etc.
  • PC Cable connector: RS232 for Configuration Software
  • PS Input: 100-240 VAC, 50-60Hz
  • PS output / Main board input 14.4 VDC / 1.5A
  • Main board output: 800mA Aux current, 500mA siren driver
  • Dimensions Polycarbonate housing: (Height x Width x Depth) 288mm x 254mm x 90mm (11.3” x 10.0” x 3.54“) Place for Main, Power
    Supply, 7Ah Battery, IP and GSM/GPRS modules (wireless receiver, voice module, zone expanders, output expanders)
  • Dimensions Large Metal housing: 420mm x 380mm x 95mm (16.5” x 15.0” x 3.75“) Place for 4A PS, STU Adapter, 17AH Battery, GSM/GPRS, IP module or Modem, 2 expansion modules (voice module, zone expanders, output expanders)

[/column]
[/row]
