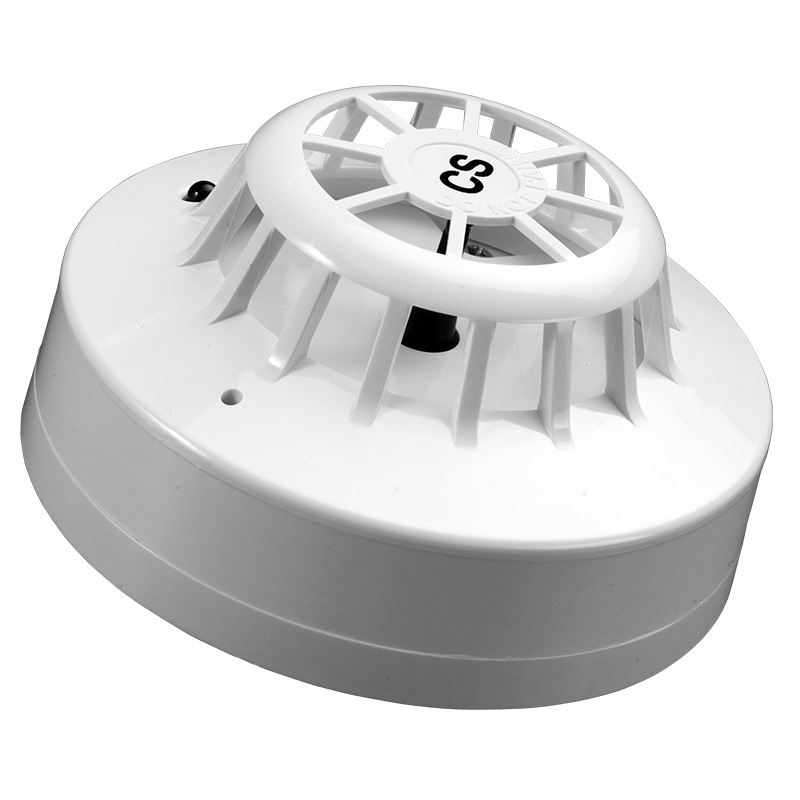

Apollo 55000-137 Series 65 CS (90ºC) heat detector

  • A high-quality Type CS static/rate of rise heat detector.
  • Monitors temperature using a dual thermistor network which provides a voltage output proportional to the external air temperature.
  • Certified to EN54-5 by the LPCB.
  • Wide 9-33V DC operating voltage.
  • Red LED illuminates when the detector is in alarm.
  • Requires a BF308ZD diode base, BF308Z non-diode base or BF308ZR relay base.
Category:

Description

Approvals/certifications Certified to EN54-5 by the LPCB.
Application/operation TBC.
Application temperature 25°C typical, 80°C max.
Static response temperature 54°C min, 100°C max.
Supply wiring 2-wire monitored, polarity sensitive.
Supply/operating voltage 9 to 33V DC.
Quiescent current 45µA @ 24 VDC.
Alarm voltage 6-28V DC.
Alarm current 17mA @ 9V DC.
Alarm reset voltage TBC.
Expansion connections Remote LED output. Current sink to negative line limited to 17mA.
Product dimensions (mm) 100mm diameter x 50mm deep (detector in base); 100mm diameter x 42mm deep (detector only).
Construction & finish White polycarbonate V.O in accordance with UL94. Nickel plated stainless steel terminals.
IP Rating IP23D.
Weight 80g (detector only); 131g (detector in base).
Operating conditions/temperature -20ºC to +90ºC.
